Rain-Ready Ventilation

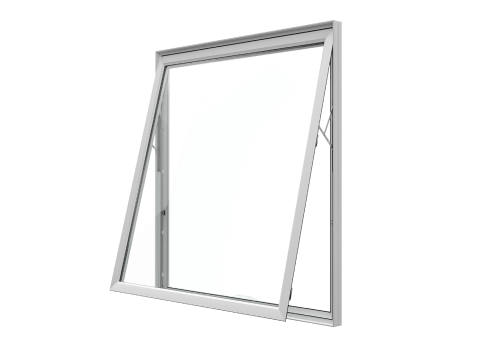

Top-hinged windows that open outward from the bottom. Excellent sealing with the ability to ventilate even during light rain. Perfect for bathrooms and basements.
Self-Service Tip
You can configure awning windows in our online tool. Choose your size, color, and grille pattern to get an instant price.
Why Choose Awning Windows
Rain Ventilation
Top-hinged design acts as a roof, allowing you to keep windows open for fresh air even during light rain.
Compression Seals
Multi-point locking system compresses the sash against the frame for superior air and water tightness.
Versatile Placement
Ideal for placement higher on walls for privacy while maintaining ventilation and natural light.
Best For
Bathrooms and kitchens needing ventilation with privacy
Facades exposed to frequent rain and wind
Basements or combinations above picture windows
Standard Features on All Awning Windows
- White Color - Standard white finish included
- Double-Glazed Unit - Sealed unit with Argon gas
- LowE² Glazing - Two coats of LowE (LoĒ²-272)
- Multi-Point Lock - Secure multipoint locking hardware
- Folding Handle - Heavy-duty folding handle
- Mosquito Mesh - Push down black mosquito mesh
- Triple Seals - Triple weather seals for maximum protection
- Jamb Extensions - Vinyl jamb extensions included
- Brick Molding - Exterior molding for brick openings
- Certified - NFRC and ENERGY STAR Certified
Why These Features Matter
Rain Protection
The top-hinged sash directs rainwater away from the opening, so you can enjoy fresh air without water entry.
Privacy & Light
Perfect for high-wall installation, allowing natural light and airflow while maintaining privacy in bathrooms.
Superior Sealing
Compression seals on all four sides ensure excellent energy efficiency and sound reduction when closed.
Glass Options
Cardinal Glass
Industry-leading Cardinal LoE-180, LoE-272, and LoE-366 glass options
Gas Fills
Argon gas standard; Krypton available for maximum efficiency
Warm-Edge Spacers
Super Spacer technology reduces condensation at glass edges
Color Options
Standard white is included, but we also offer a wide range of Gentek® and Kaycan® standard paint colours to match your home's exterior.
View Standard ColorsTechnical Specifications
| Feature | Specification |
|---|---|
| Frame Depth | 3 1/4" (Standard) or 4 5/8" (with Brickmould) |
| Sash Thickness | 1 3/8" welded sash |
| Glazing | Double (7/8") or Triple (1 3/8") |
| U-Factor | 0.26 - 0.29 (Double) / 0.18 - 0.22 (Triple) |
| Air Infiltration | A3 / Fixed: Fixed |
| Water Resistance | B7 (720 Pa) |
| Wind Load | C5 (2000 Pa) |
Frequently Asked Questions
Can I leave awning windows open when it rains?
Yes, for light to moderate rain. The sash opens outward from the bottom, creating a shield that deflects water away.
Are awning windows hard to reach?
They are operated by a crank handle at the bottom, making them easy to open even when installed higher up on a wall.
Do awning windows seal as well as casements?
Yes, they use the same compression seal technology. When locked, the sash is pulled tight against the frame for a superior seal.
